ASP.NET Core Blazor | DataGrid Paging

In this video we will discuss how to perform Paging in Blazor DataGrid. The support for Paging is provided out of the box by Syncfusion DataGrid component. It's very powerful and offers several features like

• Adaptive UI
• Touch Support
• Globalization and Localization
• Export to Excel, PDF and CSV
• Sorting, Paging, Filtering, Grouping
• Supports all the CRUD operations
• Aggregated Column Values and
• many more

You will be amazed by the power and functionality the DataGrid component bring to your Blazor app. Saves a lot of development time and effort. It is very easy to integrate, configure and use.

Syncfusion Components

Syncfusion components are free if you are an individual or a company and meet the following 2 conditions.

1. Less than $1 million USD in annual gross revenue and
2. 5 or fewer developers

Use the following link to claim the free community license
https://www.syncfusion.com/products/communitylicense

Add Syncfusion DataGrid component to Blazor application

We discussed how to add and configure Syncfusion DataGrid component in Part 4 of Web Development with Blazor video series. Click here for the course page where you will find all the videos and text articles in sequence.

Step 1 : Install "Syncfusion.Blazor.Grid" nuget package

Step 2 : For styling, reference Syncfusion Bootstrap theme file in index.html file. In a Blazor WebAssembly project, you will find index.html file in "wwwroot" folder.

Step 3 : In "imports.razor" file, include the following 2 using declarations

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Grids

Step 4 : Register Syncfusion Blazor services. We do this in the Main() method in "Program.cs" file.

builder.services.AddSyncfusionBlazor()

At this point you can use Syncfusion DataGrid component on any of your Blazor application pages.

@if (Employees != null)
{
    <SfGrid DataSource="@Employees">
        <GridColumns>
            <GridColumn Field=@nameof(Employee.EmployeeId) HeaderText="ID"></GridColumn>
            <GridColumn Field=@nameof(Employee.FirstName) HeaderText="First Name"></GridColumn>
            <GridColumn Field=@nameof(Employee.LastName) HeaderText=" Last Name"></GridColumn>
            <GridColumn Field=@nameof(Employee.Email) HeaderText="Email"></GridColumn>
            <GridColumn Field=@nameof(Employee.DepartmentId) HeaderText="Department"></GridColumn>
        </GridColumns>
    </SfGrid>
}

@code{
    public List<Employee> Employees { get; set; } = null;

    [Inject]
    public IEmployeeService EmployeeService { get; set; }

    protected override async Task OnInitializedAsync()
    {
        Employees = (await EmployeeService.GetEmployees()).ToList();
    }
}

SQL Script

SQL Script used in the video to populate test data in Employees table.

Declare @TotalRowsToInsert int = 25
Declare @Counter int = 1

DECLARE @StartDate	DATE = '1980-01-01'
DECLARE @EndDate	DATE = '2020-12-31'

WHILE(@Counter <= @TotalRowsToInsert)
BEGIN

	DECLARE @FirstName NVARCHAR(10) = 'fn' + RTRIM(@Counter)
	DECLARE @LastName  NVARCHAR(10) = 'ln' + RTRIM(@Counter)
	DECLARE @Email	   NVARCHAR(50) = @FirstName + @LastName + '@pragimtech.com'
	-- Select a Random Date
	DECLARE @DoB DATETIME = DATEADD(DAY, RAND(CHECKSUM(NEWID()))*(1+DATEDIFF(DAY, @StartDate, @EndDate)), @StartDate)
	-- Select a Random Number between 0 and 2
	DECLARE @Gender INT = FLOOR(RAND() * 3);
	-- Select a Random Number between 1 and 4
	DECLARE @DeptId INT = ABS(CHECKSUM(NEWID()) % 4) + 1

	INSERT INTO Employees VALUES (@FirstName, @LastName, @Email, @DoB, @Gender, @DeptId, null)

	SET @Counter = @Counter + 1
END

Enable DataGrid Paging in Blazor

• To enable paging, simply set AllowPaging="true"
• Use PageSize property of GridPageSettings to specify the number of rows you want to display on each page.
• Use PageCount property to specify the number of pages to display in the pager.
• Use PageSizes property to render DropDownList in the pager which allow the user to select page size from the DropDownList.

@if (Employees != null)
{
<SfGrid DataSource="@Employees" AllowPaging="true">
    <GridPageSettings PageSize="10" PageCount="5" PageSizes="@pagerDropdown">
    </GridPageSettings>
    <GridColumns>
        <GridColumn Field=@nameof(Employee.EmployeeId) HeaderText="ID"></GridColumn>
        <GridColumn Field=@nameof(Employee.FirstName) HeaderText="First Name"></GridColumn>
        <GridColumn Field=@nameof(Employee.LastName) HeaderText=" Last Name"></GridColumn>
        <GridColumn Field=@nameof(Employee.Email) HeaderText="Email"></GridColumn>
        <GridColumn Field=@nameof(Employee.DepartmentId) HeaderText="Department"></GridColumn>
    </GridColumns>
</SfGrid>
}

@code{
    string[] pagerDropdown = new string[] { "All", "5", "10", "15", "20" };

    public List<Employee> Employees { get; set; } = null;

    [Inject]
    public IEmployeeService EmployeeService { get; set; }

    protected override async Task OnInitializedAsync()
    {
        Employees = (await EmployeeService.GetEmployees()).ToList();
    }
}

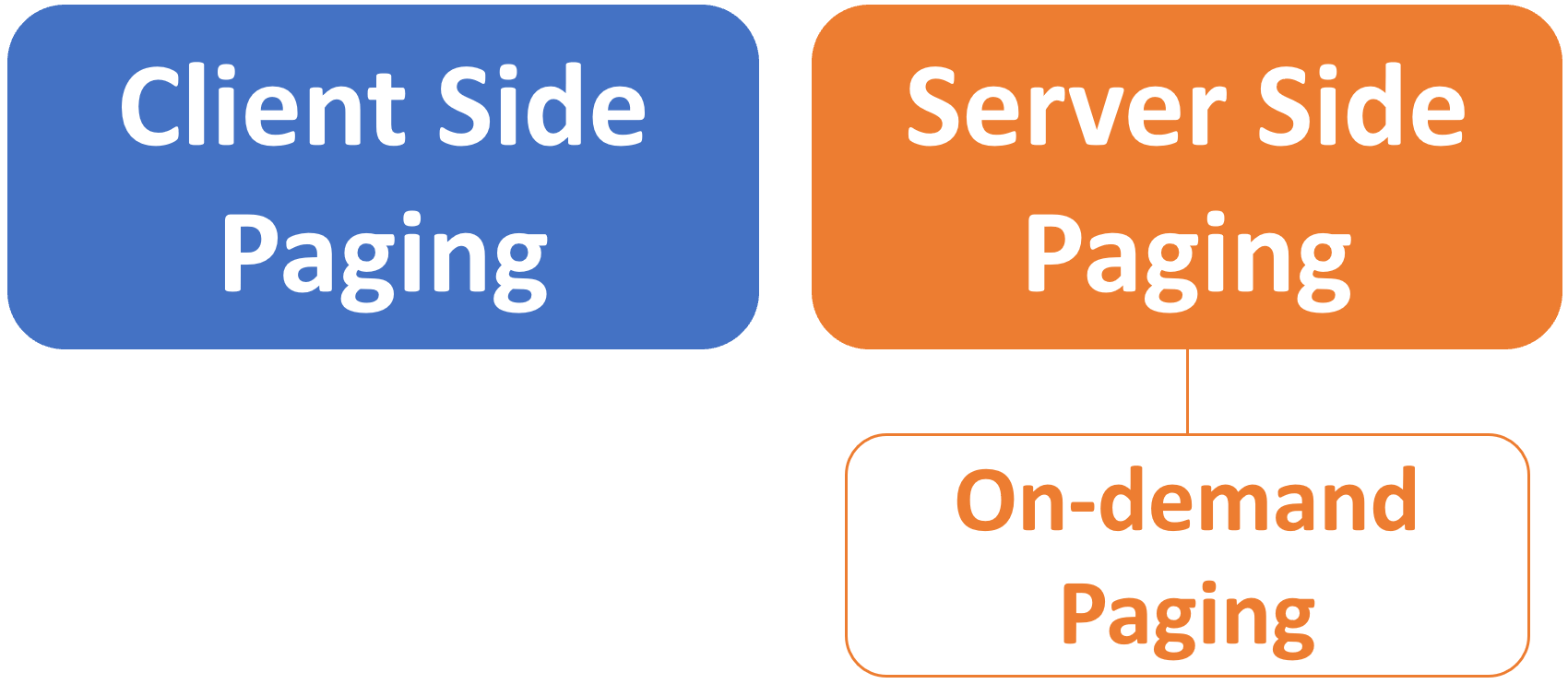

Client-Side and Server-Side Paging

At the moment all the data is retrieved from the server onto the client machine. The paging is performed on the client-side. This is called client-side paging and it works fine if the number of rows are less, may be a few hundered or even a thousand, but if you have millions of rows, server-side paging (also called on-demand paging) provides better performance over client-side paging. We will discuss implementing server-side paging in a later video.

Loggin Entity Framework Core SQL commands

If you want to log the SQL Commands sent to the database, include the following configuration in appsettings.json

"Logging": {
  "LogLevel": {
    "Microsoft.EntityFrameworkCore.Database.Command": "Information"
  }
}
